Yellowline
Number of Cores: 2 Core
Number of Pairs: 2 Pair
Conductor size: 0.75mm2
Conductors: Stranded Plain Copper Conductors
Insulation: PVC
Max. operating conductor temp. = 70°C @ 300-500 VCA
Coloured for core identification
Bedding: PVC
Armour: Brass Cladded steel braiding
Sheath: Fire Retardant PVC
Tensiles before aging > 12.5 MPa
Orangeline
Orange line can be ordered in 4 different ways:
Option 1:
2 Core - 1.5mm2
Option 2:
5 Pair - 1.0mm2
Option 3:
10 Pair - 1.0mm2
Option 4:
30Pair - 1.0mm
Conductors: Stranded Plain Copper Conductors
Insulation: PVC
Max. operating conductor temp. = 70°C @ 300-500 VCA
Coloured for core identification
Bedding: PVC
Armour: Brass Cladded steel braiding
Sheath: Fire Retardant PVC
Tensiles before aging > 12.5 MPa
Greenline
Number of Cores: 6 Core
Conductor size: 0.75mm2
Conductors: Stranded Plain Copper Conductors
Insulation: PVC
Max. operating conductor temp. = 70°C @ 300-500 VCA
Coloured for core identification
Bedding: PVC
Armour: Brass Cladded steel braiding
Sheath: Fire Retardant PVC
Tensiles before aging > 12.5 MPa
Blueline
Number of Cores: 2 Core -
Core Conductor Size: 2.5mm2
Number of Pairs: 5 pair
Pairs conductor size: 0.75mm2
Conductors: Stranded Plain Copper Conductors
Insulation: PVC
Max. operating conductor temp. = 70°C @ 300-500 VCA
Coloured for core identification
Bedding: PVC
Armour: Brass Cladded steel braiding
Sheath: Fire Retardant PVC
Tensiles before aging > 12.5 MPa
Grey Braided Cable
Application: Underground cable
Conductor: 0,50mm2 / 1.5mm2 copper
Insulation: PVC
Lay-up: 3 core with copper outer braid
Sheath: Grey PVC

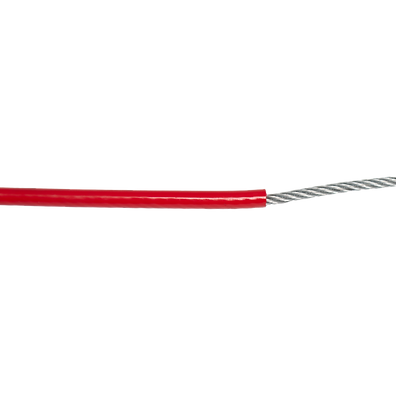

Pull Wire
Insulation : Red Fire retardant Outer sleeve
Cable size : 3mm
Application : Pull wire for Pull keys
